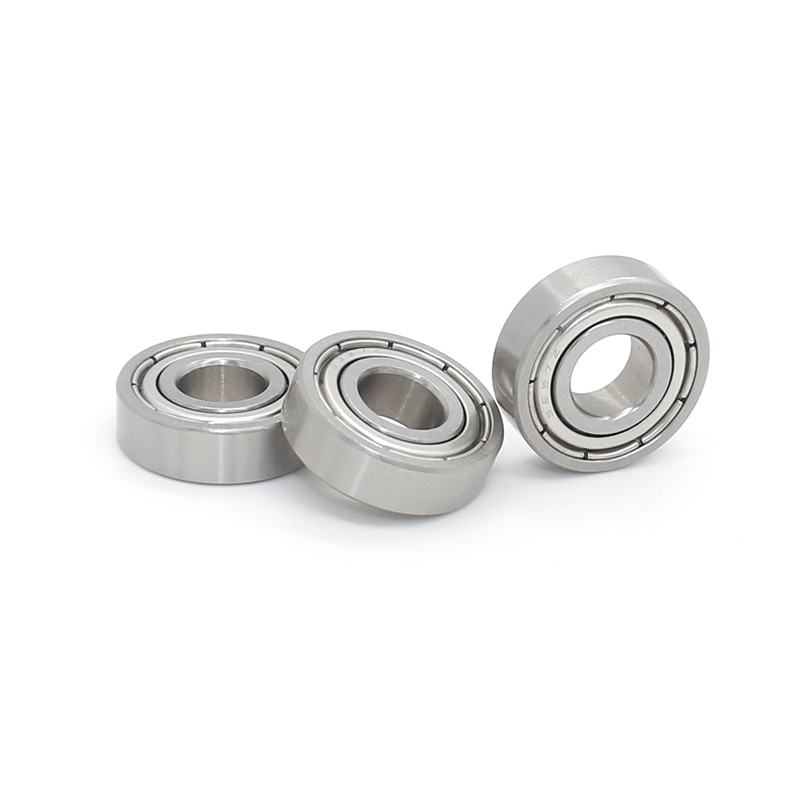

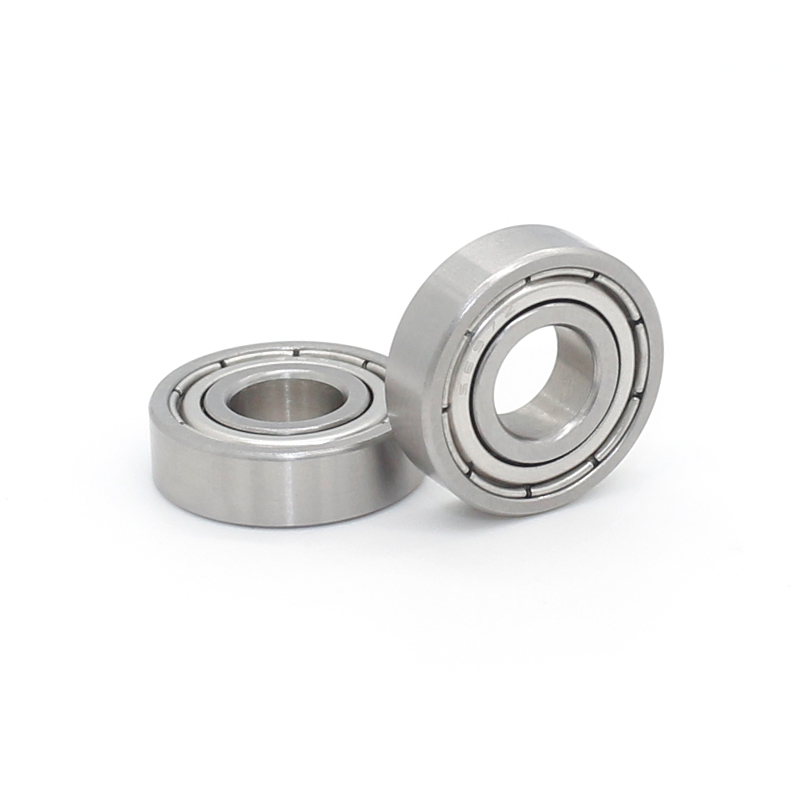

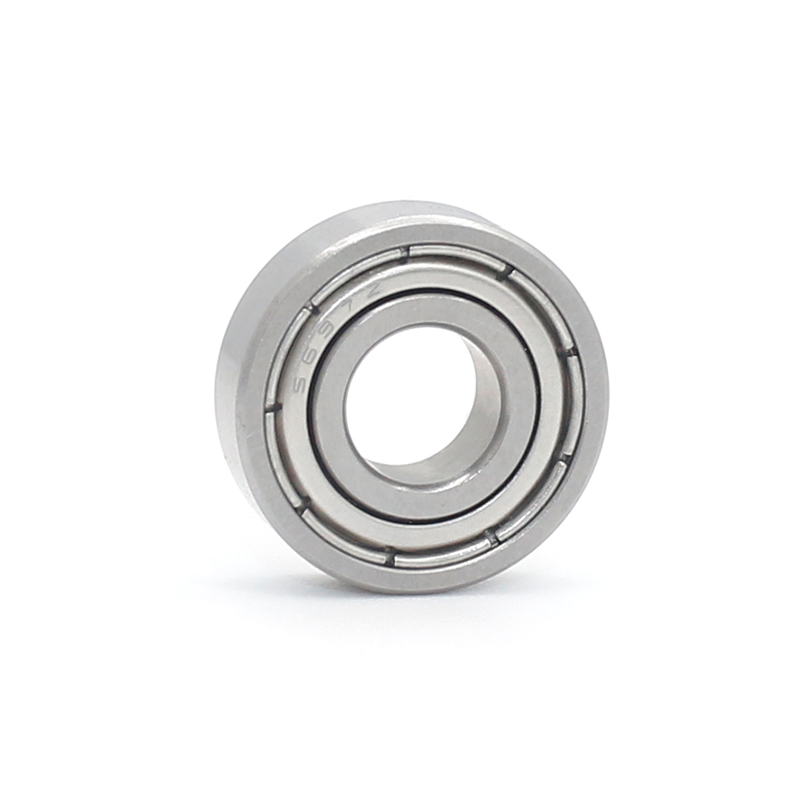

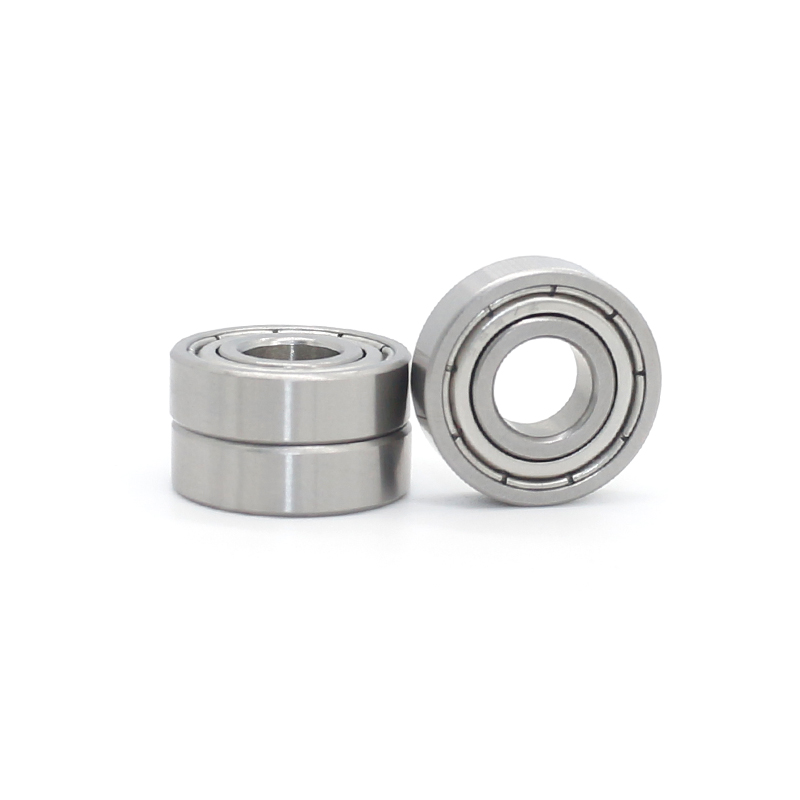

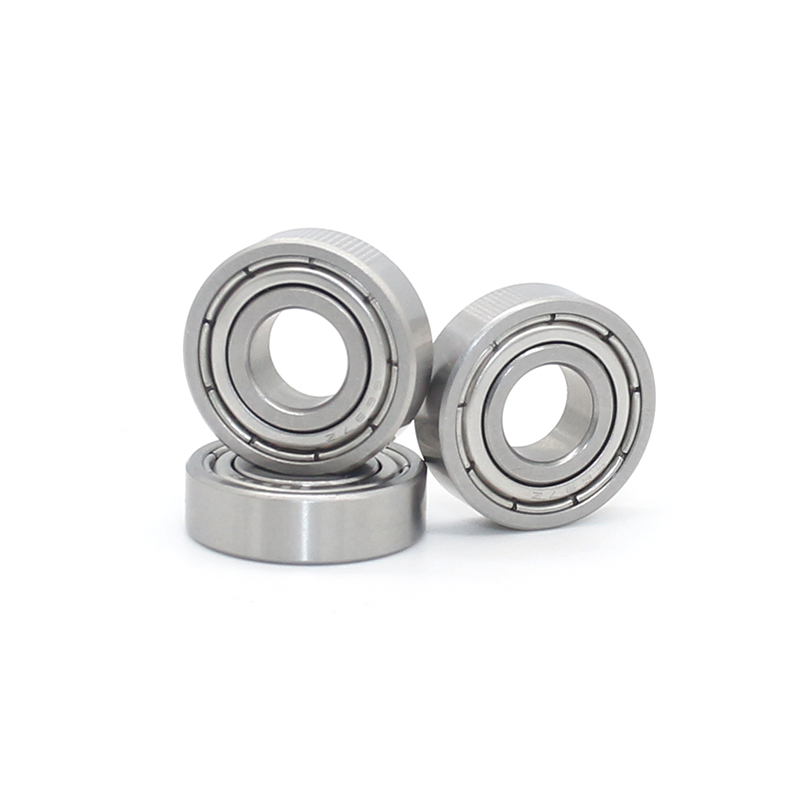

S697ZZ is a stainless-steel ball bearing with 7mm bore diameter, 17mm outer diameter and 5mm width (thickness). The S697ZZ stainless steel ball bearings feature stronger rust and corrosion resistance ability to withstand destruction caused by humidity and some other media.

S697ZZ Stainless Steel Miniature Ball Bearing Specifications

Part Number: S697ZZ

Bearing Type: Ball

Structure: Single Row

Load Direction: Radial

Seal Type: Shields

Bore Diameter: 7mm

Outer Diameter: 17mm

Width(B): 5mm

Material: Stainless steel 440C(9Cr18)

Ring Material: Stainless steel 440C(9Cr18)

Cage Material: Stainless steel 304

Ball Material: Stainless steel 440C(9Cr18)

Shield Material: Stainless steel 304 with rubber

Grade: ABEC-1 (ABEC-3, 5, 7, 9 available)

Clearance: C0 (C2, C3, C4, C5 available)

Ball Size: 2mm

Ball Quantity: 9pcs

Lubrication: grease (oil available)

Temperature Range: -30℃~130℃

Net Weight(g): 5.26 grams

Dynamic Load Rating (Cr): 997N

Static Load Rating (Cor): 410N
