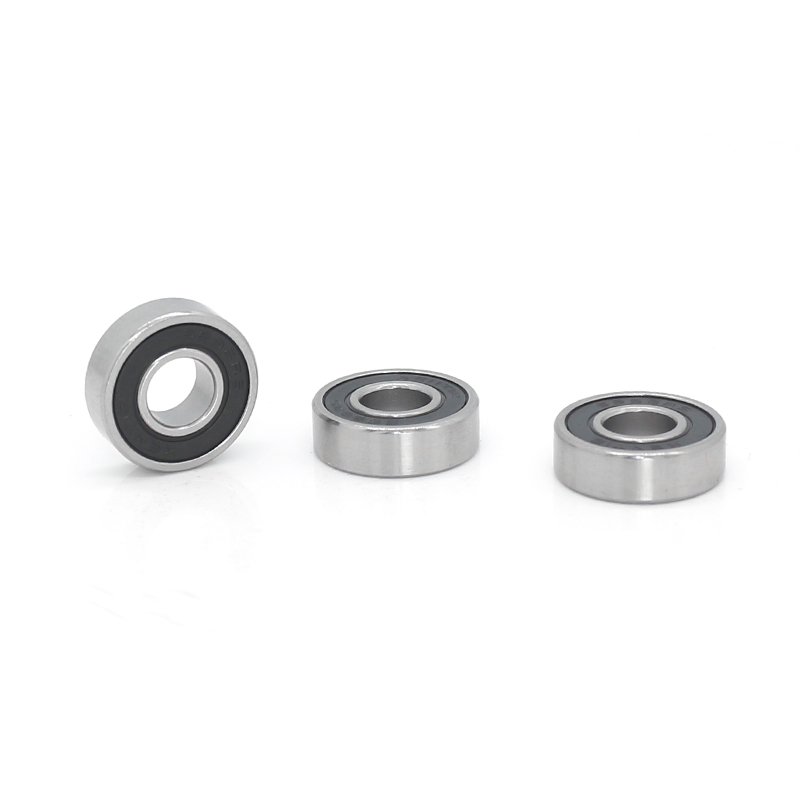

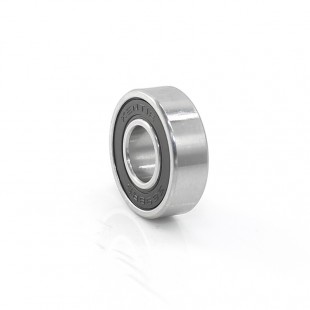

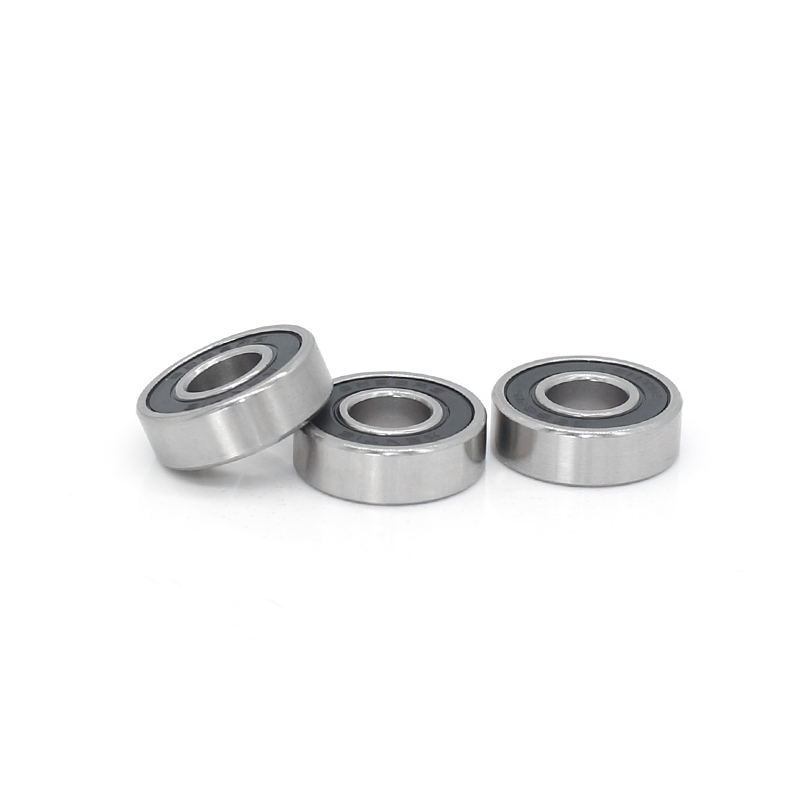

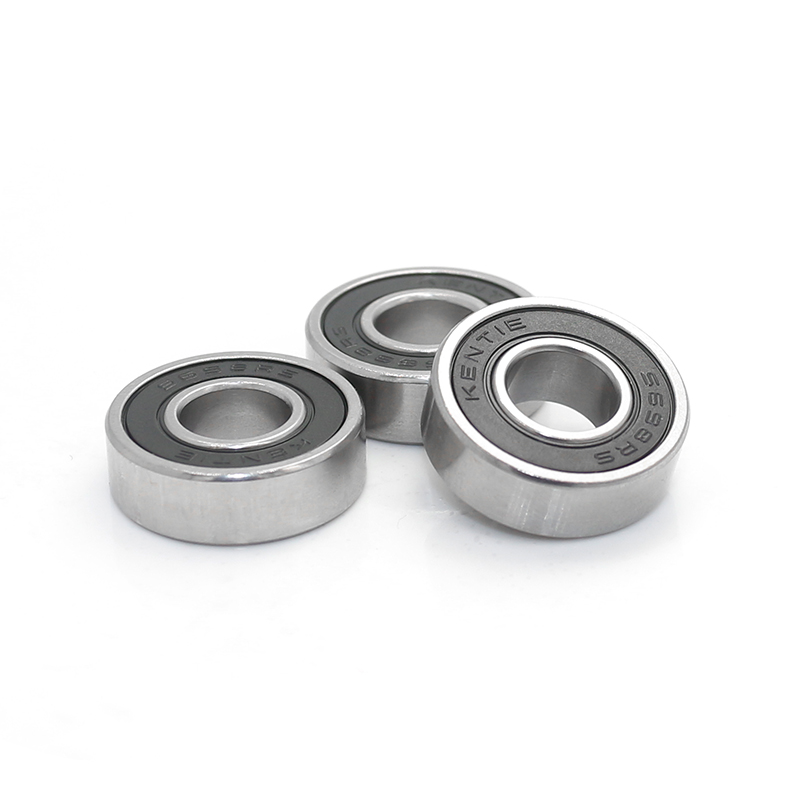

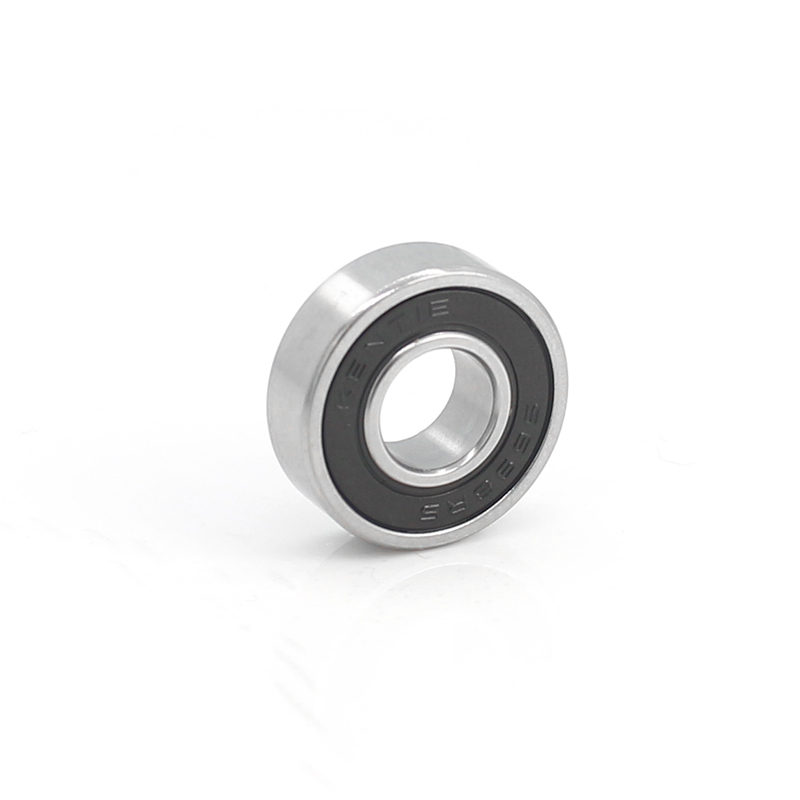

S698-2RS is a stainless-steel ball bearing with 8mm bore diameter, 19mm outer diameter and 6mm width (thickness). The S698-2RS stainless steel ball bearings feature stronger rust and corrosion resistance ability to withstand destruction caused by humidity and some other media.

S698-2RS Stainless Steel Miniature Ball Bearing Specifications

Part Number: S698-2RS

Bearing Type: Ball

Structure: Single Row

Load Direction: Radial

Seal Type: Rubber seals

Bore Diameter: 8mm

Outer Diameter: 19mm

Width(B): 6mm

Material: Stainless steel 440C(9Cr18)

Ring Material: Stainless steel 440C(9Cr18)

Cage Material: Stainless steel 304

Ball Material: Stainless steel 440C(9Cr18)

Shield Material: Stainless steel 304 with rubber

Grade: ABEC-1 (ABEC-3, 5, 7, 9 available)

Clearance: C0 (C2, C3, C4, C5 available)

Ball Size: 3.175mm

Ball Quantity: 7pcs

Lubrication: grease (oil available)

Temperature Range: -30℃~130℃

Net Weight(g): 7.57 grams

Dynamic Load Rating (Cr): 1902N

Static Load Rating (Cor): 734N
