MF106ZZ Flange Ball Bearings 6x10x3 mm

Shipping Methods

To most of the countries in North Americas, Europes and Asia, we usually use DHL and UPS for shipping, sometimes EMS or FedEX.
To Russia, we use CDEK.ru. Russian customers also can choose their own forwarding / shipping companies.

Please leave comments with the order if either one of them is not suitable for shipping to your country and for customs declaration.

Shipping Cost

The shipping cost mostly depends on the shipment gross weight and shipping destination.

For shipment under 21kgs (kilograms), the shipping cost calculation bases on 0.5kgs. The formula is: X+(Y-0.5)/0.5*Z.
X=1st 0.5kgs cost
Y=shipment gross weight (Kilogram)
Z=shipping rate on each additional 0.5kgs
For example
To USA, the initial 0.5kgs cost is usually around US$20, and the additional cost is US$3.5 per 0.5kgs.
For 15kgs to USA, the shipping cost is: 20+(15-0.5)/0.5*3.5=US$121.5

For shipment above 21kgs, the shipping cost calculation bases on 1kgs. The formula is: Y*Z.
Y=shipment gross weight (Kilogram)
Z=shipping rate each Kilogram
For example
To UK, the shipping rate is 6.5USD/KGS.
For 22kgs to UK, the shipping cost is: 22*6.5=US$143

Generally, the larger the shipment gross weight the lower shipping cost for each item of products.

Delivery Time

The delivery time includes order processing time and shipping time.
Usually, the processing time is 1 - 5 business days depending on the order quantity and products; the shipping time is 3 - 5 business days.

NOTE: all of the costs (shipping, products) does NOT include the taxes occurred at destination country's customs.

We accept the below payment methods:

Paypal: this is authorized Paypal standard payment, you can pay from your credit card and then via paypal. It is for the order total less than certain amount, and only for some certain countries.

Bank Transfer: for any order and any countries

Western Union: for any order and any countries

You will find the available payment methods for specific order on the checkout page. Please feel free to contact us if you want to pay by other methods.

NOTE: Orders paid by Bank Transfer and Western Union will NOT be processed until we receive the bank receipt copy; and will NOT shipped until the payment was received.

Please don't hesitate to contact us for assistance if you encounter any problem on the payment.

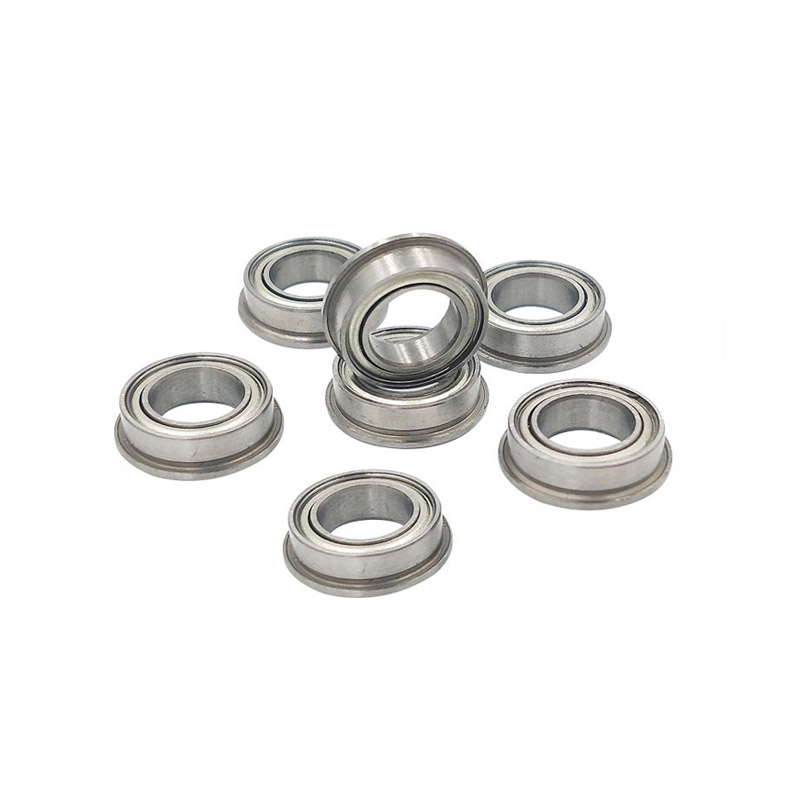

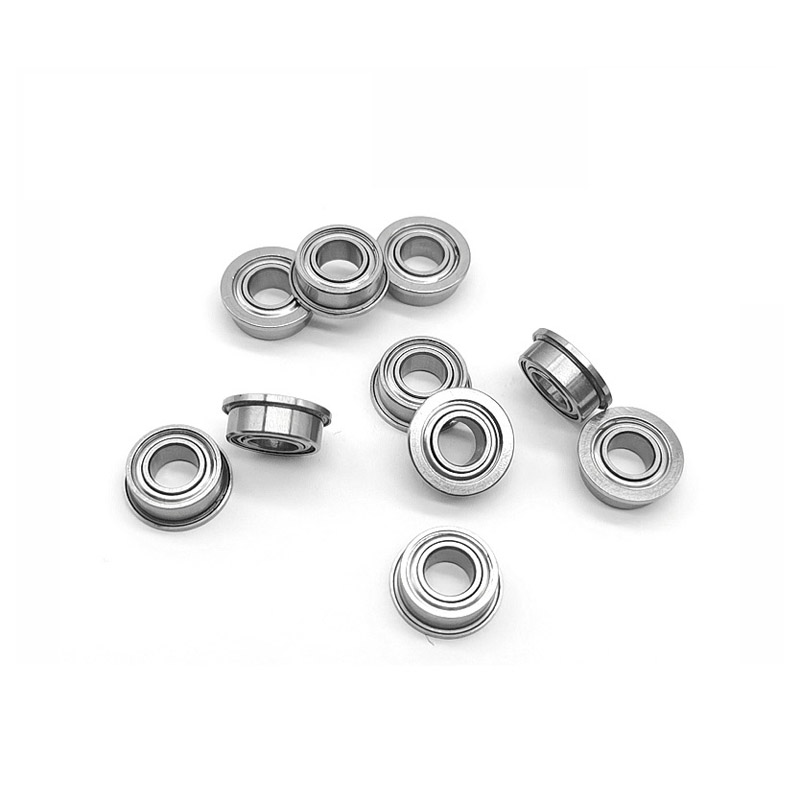

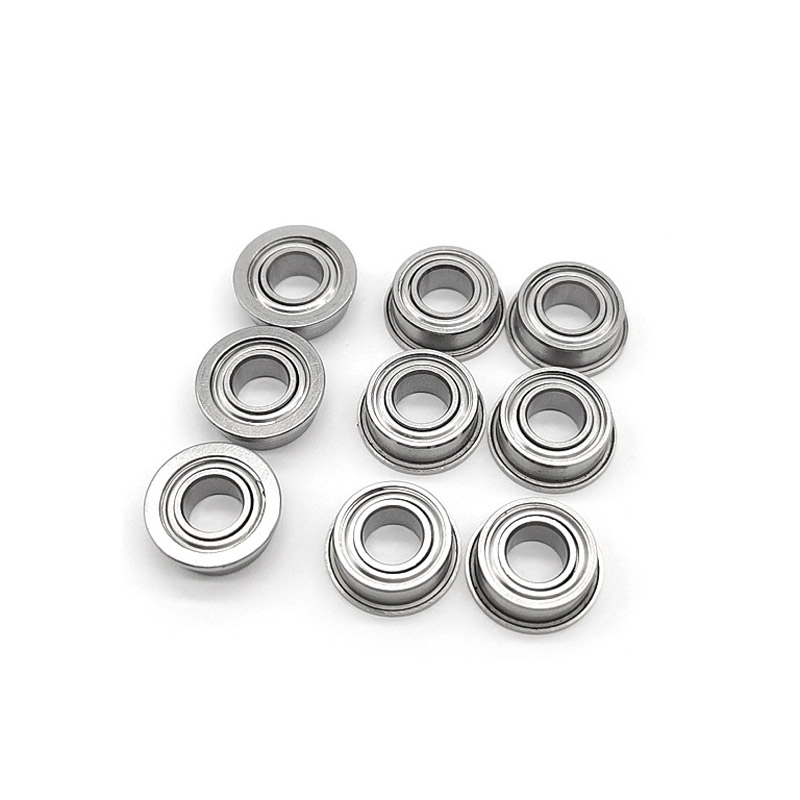

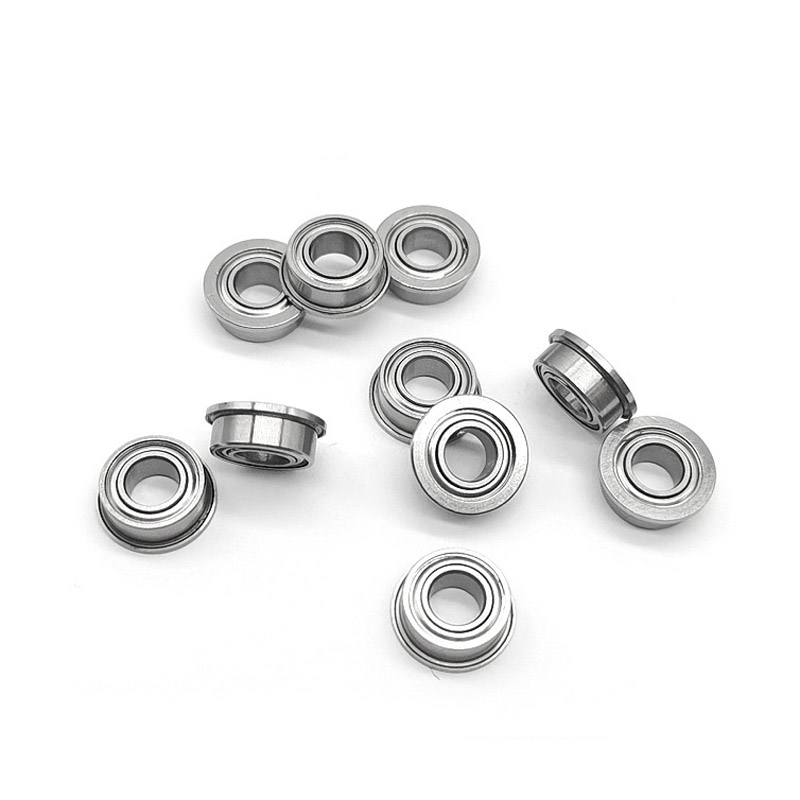

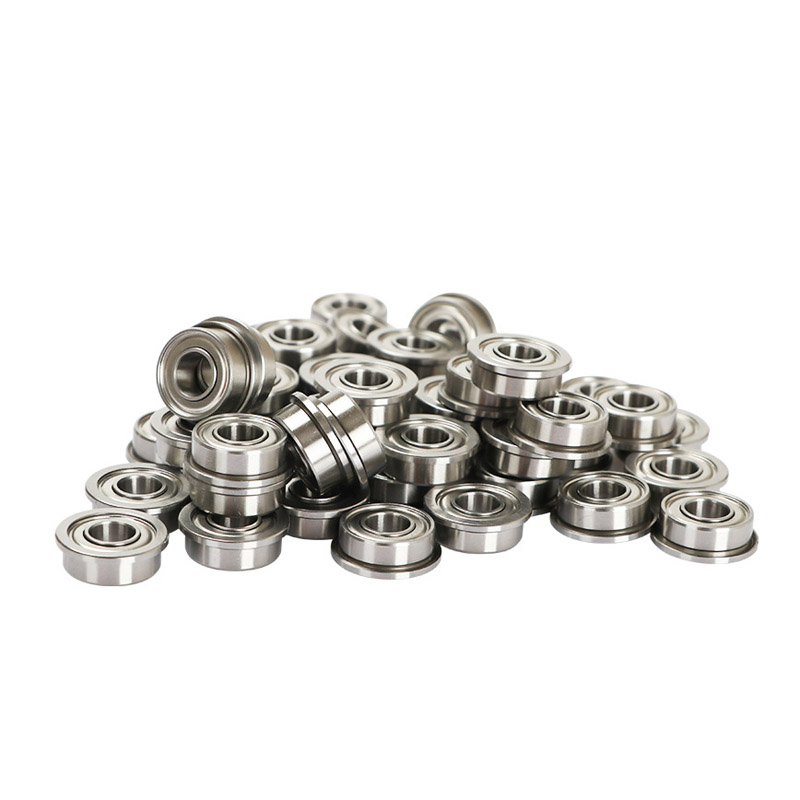

MF106ZZ is a mini flange ball bearing with double sides metal shields. The bore diameter of MF106ZZ is 6mm, and its outer diameter is 10mm, its width is 3mm. Luxmake manufactures high quality MF106ZZ flanged ball bearings with very competitive prices. Customization is welcome, please send us your design / requirements to get a quick and free quotation today.

MF106ZZ Flange Ball Bearing Specifications

Part Number: MF106ZZ

Bearing Type: Ball

Structure: Single Row

Load Direction: Radial

Seal Type: Shields

Bore Diameter: 6mm

Outer Diameter: 10mm

Flange OD: 11.2mm

Width(B): 3mm

Flange Thickness: 0.6mm

Radius: 0.1mm

Material: Chrome steel 52100(Gcr15)

Ring Material: Chrome steel 52100(Gcr15)

Cage Material: 300 Series Stainless Steel

Ball Material: Chrome steel 52100(Gcr15)

Shield Material: 300 Series Stainless Steel

Grade: ABEC-1 (ABEC-3, 5, 7, 9 available)

Clearance: C0 (C2, C3, C4, C5 available)

Ball Size: 1.2mm

Ball Quantity: 10pcs

Lubrication: grease (oil available)

Temperature Range: -30℃~130℃

Net Weight(g): 0.7 grams

Dynamic Load Rating (Cr): 422N

Static Load Rating (Cor): 174N
