FREE SAMPLES are available for F5-12M Thrust Ball Bearings, please contact us to get the free samples today.

Customization on the F5-12M thrust ball bearings is welcome, please contact with us for a quick and free quotation for your project.

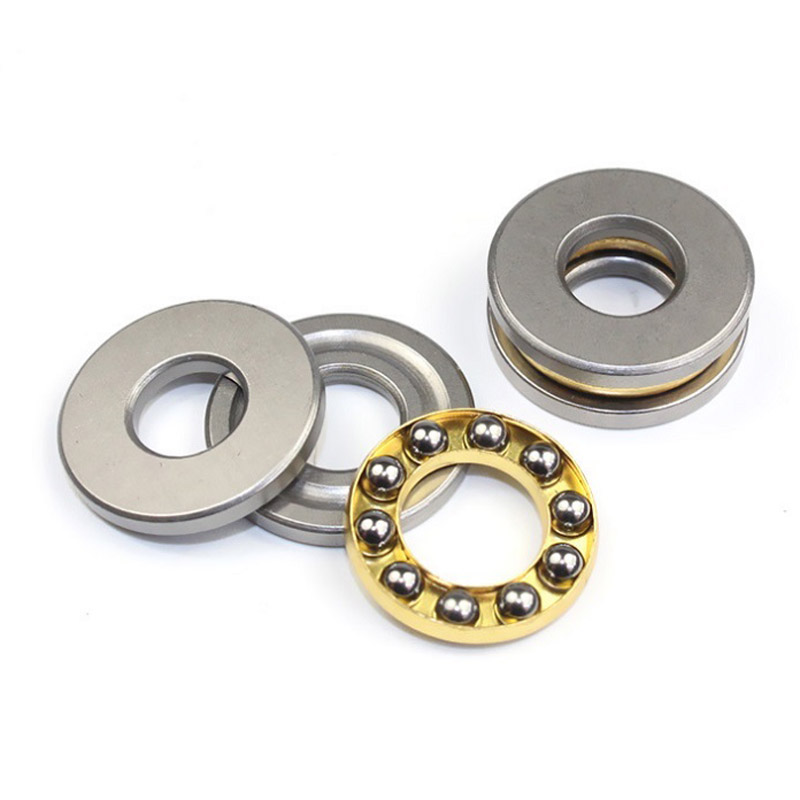

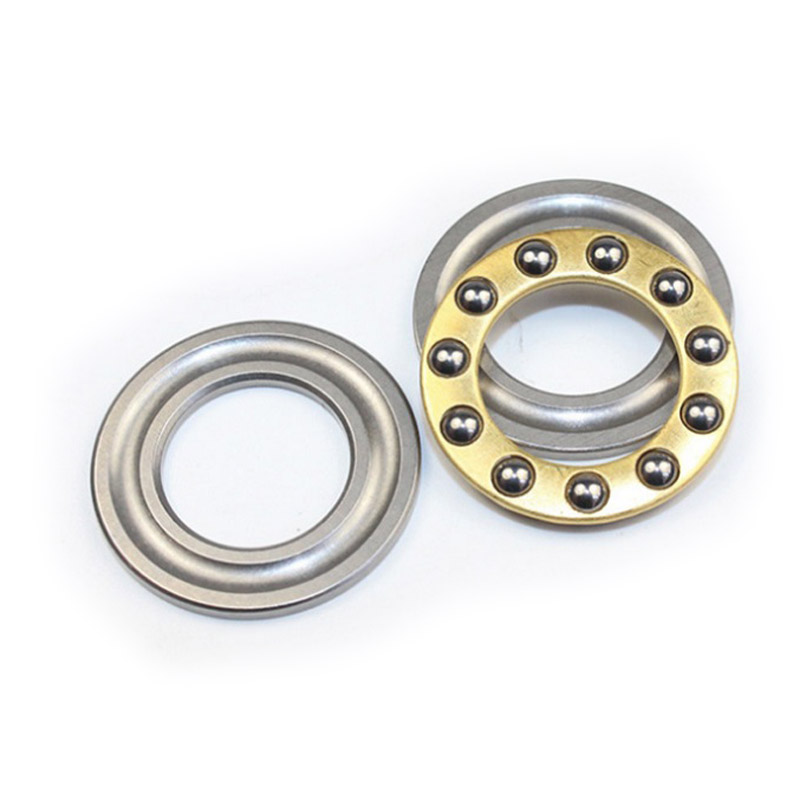

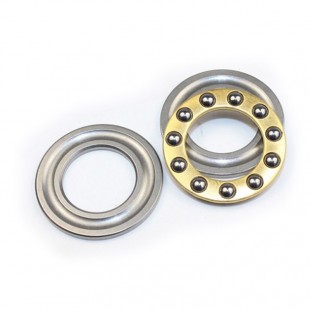

F5-12M is a miniature thrust ball bearing with bore diameter of 5mm and outer diameter of 12mm. We have huge stock for F5-12M thrust bearings and can ship them to you in a short time.

F5-12M Thrust Ball Bearing Specifications:

Part Number: F5-12M

Bearing Type: Ball

Structure: Thrust Ball

Load Direction: Axial

Raceway Type: groove raceway

Bore Diameter of Shaft Washer(d): 5mm

Outer Diameter of housing washer(D): 12mm

Bore Diameter of housing washer(d1): 5.2mm

Outer Diameter of shaft washer(D1): 11.8mm

Thickness(H): 4mm

Radius: 0.15mm

Washers Material: Chrome steel 52100(Gcr15)

Cage Material: Bronze or stainless steel

Ball Material: Chrome steel 52100(Gcr15)

Grade: ABEC-1 (higher grade available)

Clearance: C0 (other clearance available)

Ball Size: 1.588mm

Ball Quantity: 7pcs

Lubrication: grease (oil available)

Temperature Range: -30℃~130℃

Net Weight(g): 2.1 grams

Dynamic Load Rating (Cr): 1056N

Static Load Rating (Cor): 942N
