FREE SAMPLES are available for F9-17M Thrust Ball Bearings before your volume order. Please contact us to get the free samples today.

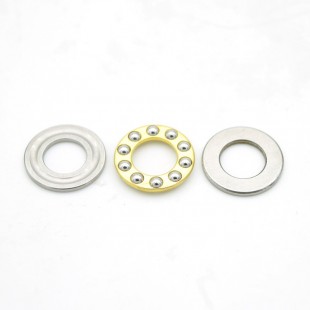

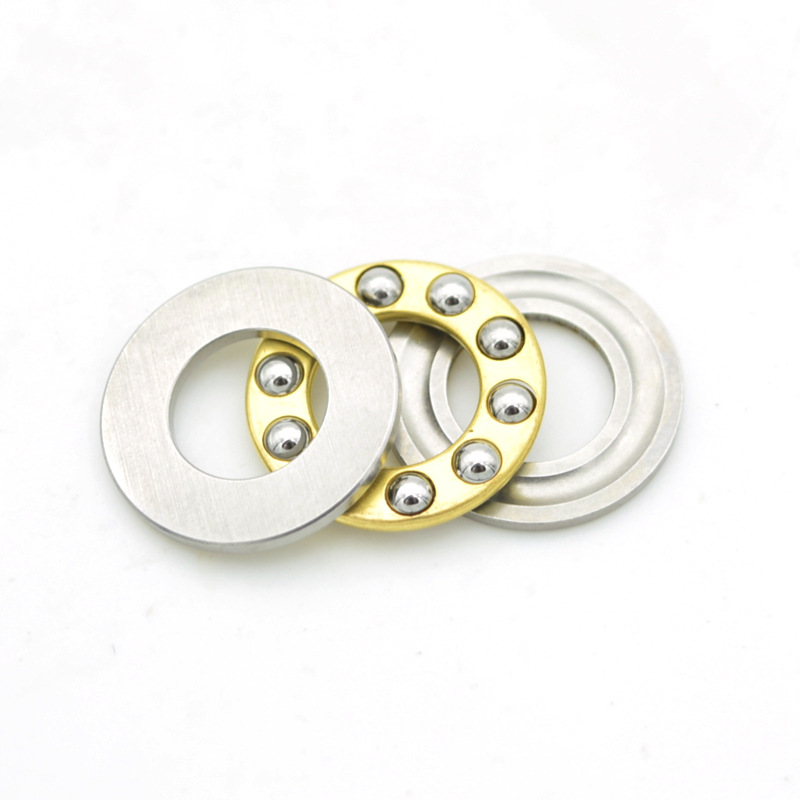

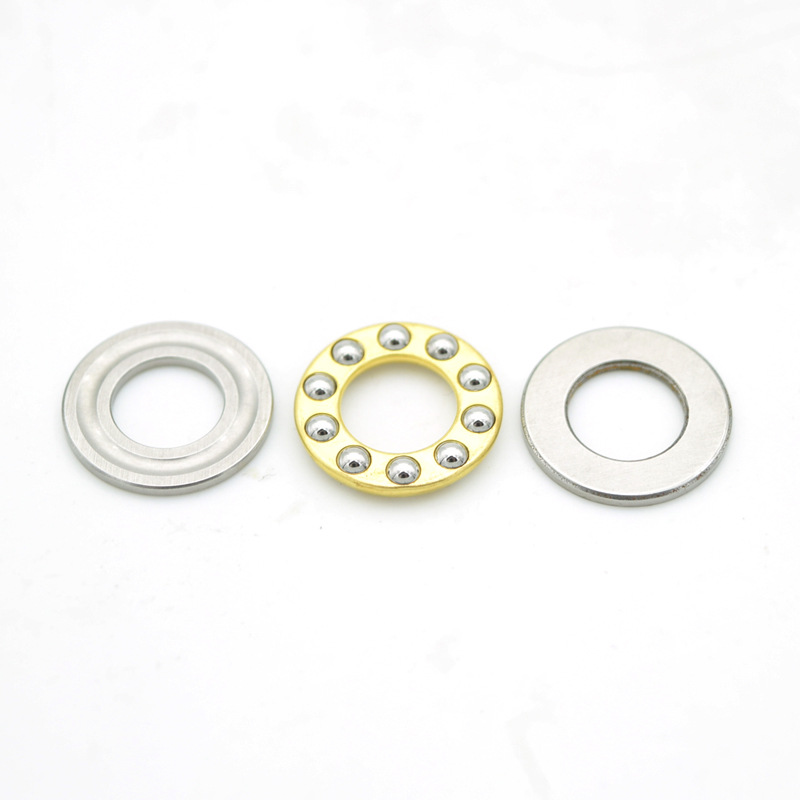

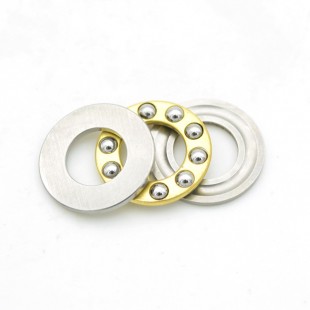

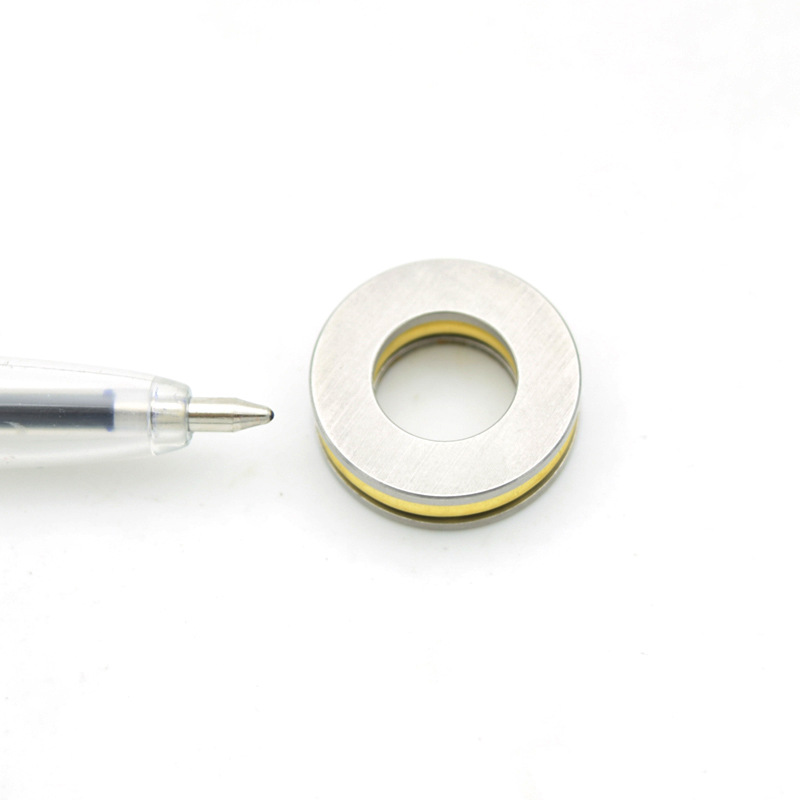

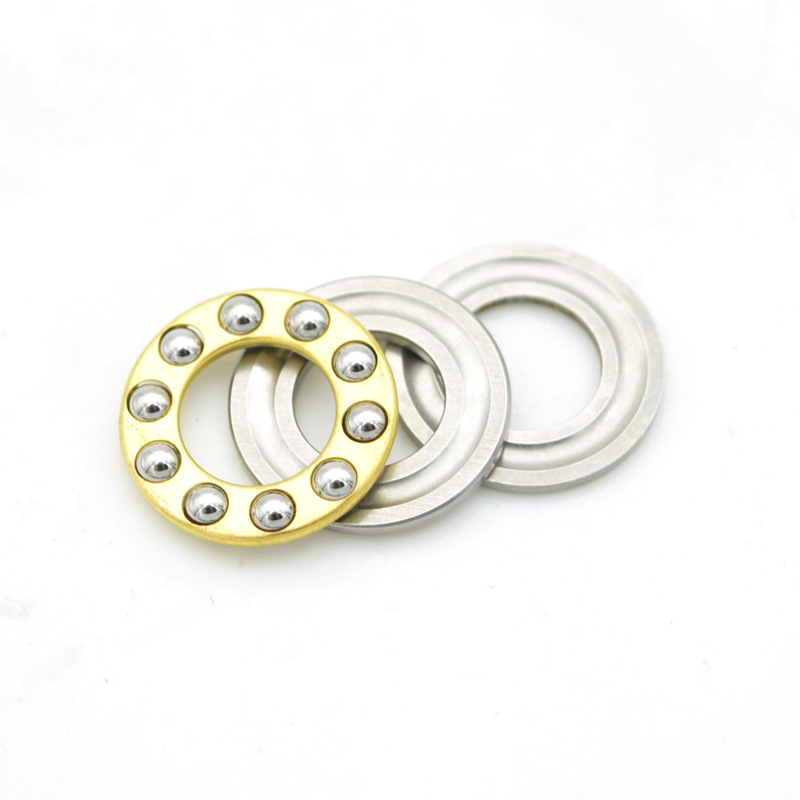

F9-17M is a miniature thrust groove bearing with bore diameter 9mm and outer diameter 17mm. Customization is available on F9-17M thrust bearings, please send us your design to get a quick and free quotation today.

F9-17M Thrust Ball Bearing Specifications

Part Number: F9-17M

Bearing type: Ball

Structure: Thrust Ball

Load Direction: Axial

Raceway type: groove raceway

Bore Diameter of Shaft Washer(d): 9mm

Outer Diameter of Housing Washer(D): 17mm

Bore Diameter of Housing Washer(d1): 9.2mm

Outer Diameter of Shaft Washer(D1): 16.8 mm

Thickness(H): 5mm

Radius: 0.2mm

Washers Material: Chrome steel 52100(Gcr15)

Cage Material: bronze or stainless steel

Ball Material: Chrome steel 52100(Gcr15)

Grade: ABEC-1 (higher grade available)

Clearance: C0(other clearance available)

Ball Size(mm): 2.381mm

Ball Quantity: 10pcs

Lubrication: grease (oil available)

Temperature Range: -30℃~130℃

Net Weight(g): 5.1 grams

Dynamic Load Rating (Cr): 3930 N

Static Load Rating (Cor): 3549 N
